Four Configurations. Interchangeable by Design.
The right type for a given project depends on required exhaust volume, roof pitch, and architectural preference — resolved through technical consultation rather than a fixed sector default.

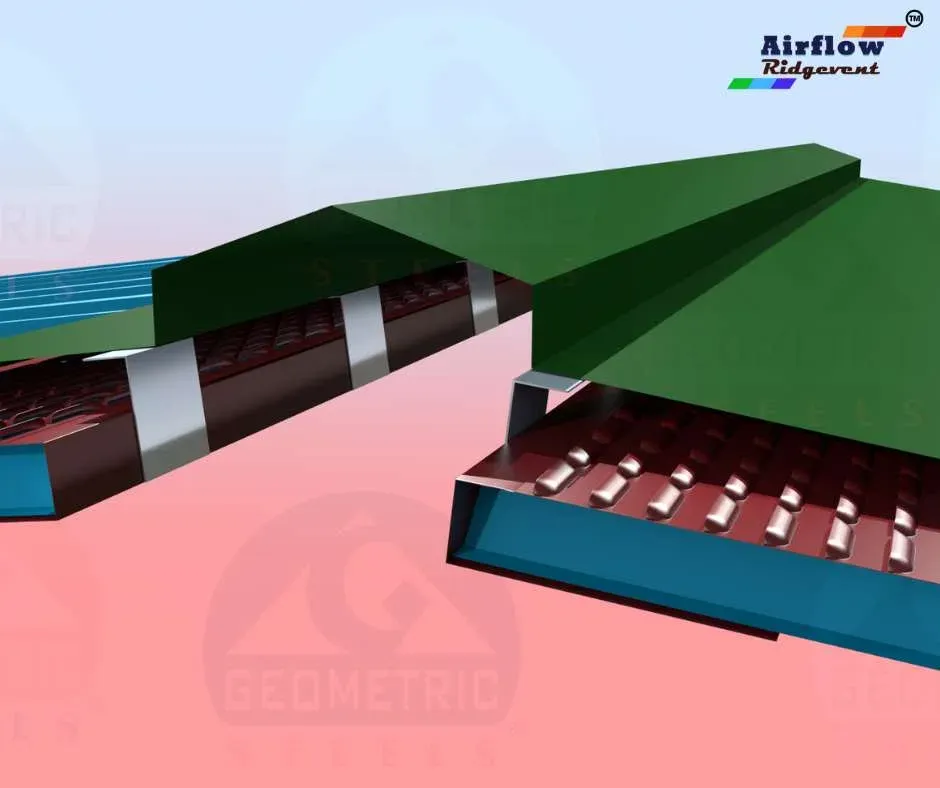

Dual louvered exhausts with a Galvalume plate perpendicular to the roof slope, in a hat-type cavity ridge. Carries the largest ridge cavity size in the range for maximum exhaust performance along the full ridge length.
| STD. LENGTH | 5.00 meters |
| THROAT SIZE | 100mm to 150mm |
| BASE MATERIAL | Hot-dip galvanized CRCA steel, min. 240 MPa yield strength, IS 513 |
| COATING | Zinc per IS 277; chemical conversion + 5–7 micron epoxy primer |
| FINISH | 20-micron RMP (DFT) exposed / 5-micron (DFT) unexposed |
| THICKNESS | 0.50mm TCT |
- Discreet roofline — small throat option suits architectural priorities
- Continuous ventilation along entire ridge, not fixed points
- Hidden underneath louvered ridge cap

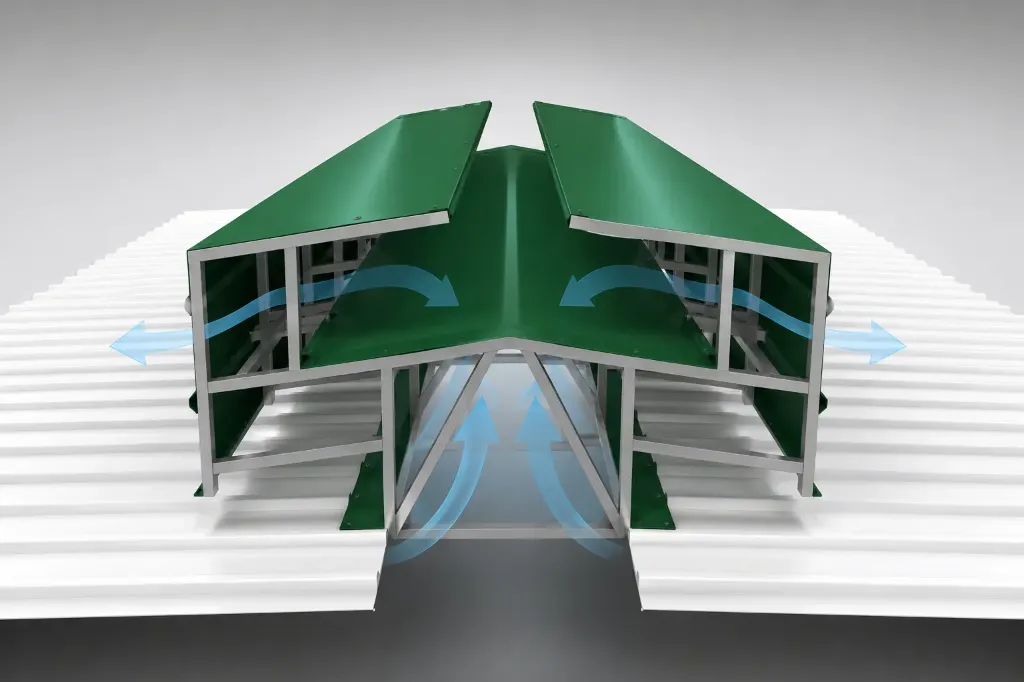

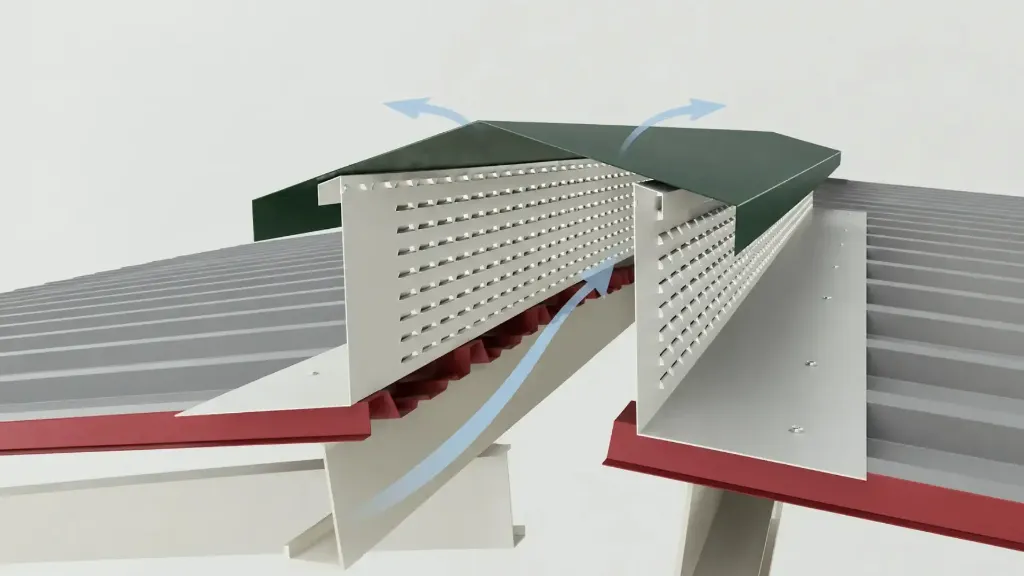

Dual vertical louvered exhaust plates on a raised profile above the roofline, enhancing natural draft and cross-ventilation. Engineered for easy installation on both new and existing roofing, regardless of profile design.
| STD. LENGTH | 3.00 meters (up to 5m available) |
| THROAT SIZE | 150mm to 200mm |
| BASE MATERIAL | Hot-dip galvanized CRCA steel, min. 240 MPa yield strength, IS 513 |
| COATING | Zinc per IS 277; chemical conversion + 5–7 micron epoxy primer |
| COMPATIBILITY | Standing seam or trapezoidal roofing systems |
- Raised profile enhances natural draft vs. flush ridge designs
- Retrofits onto existing roofing as well as new construction
- 5-meter lengths available, reducing ridge joints

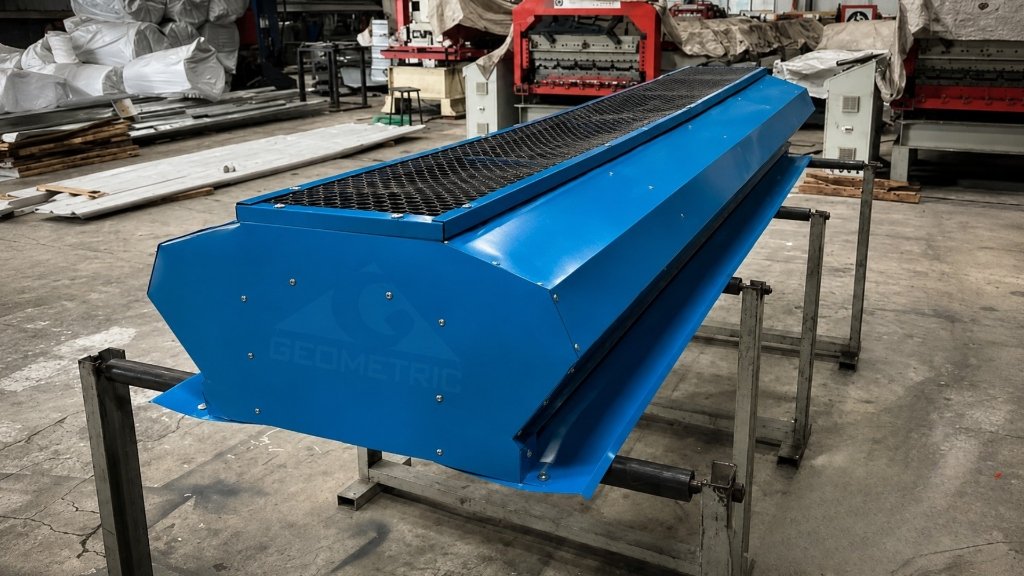

Outer band panels, internal ridge, and end caps in 0.50mm color-coated steel on a Bare Galvalume AZ 150 (550 MPa) frame. GI bird mesh fitted at exhaust opening. Largest dome cavity size in the range for optimal exhaust performance.
| STD. LENGTH | 3.00 meters |
| THROAT SIZE | 300mm / 450mm / 600mm |
| FRAME | Bare Galvalume AZ 150, 550 MPa strength |
| PROTECTION | GI bird mesh at exhaust opening |
| ROOF PITCH | Suitable up to 6:12 |
| SUPPORT (600mm) | Intermediate steel frame every 1.00m |
- Largest heat accumulation capacity in the range
- Continuous drainage slot in outer wind band, both sides
- Zero operating and maintenance cost long-term
Built for large-span industrial roofing requiring high-capacity exhaust. Assembled on-site with an intermediate steel welded frame at regular intervals, plus an internal gutter outlet system for rainwater management.
| THROAT SIZE | 900mm to 3000mm, customizable on-site |
| PANEL MATERIAL | Color-coated Galvalume, 0.50 TCT, AZ 150, 550 MPa |
| PROTECTION | GI bird mesh at exhaust opening |
| ASSEMBLY | Modular, on-site — flexible alignment with roof structure |
| DRAINAGE | Internal gutter outlet system integrated |
- Highest-capacity throat opening in the range (up to 3000mm)
- Purpose-built for large-span sheds where exhaust volume is priority
- Zero organized competition at this throat capacity
